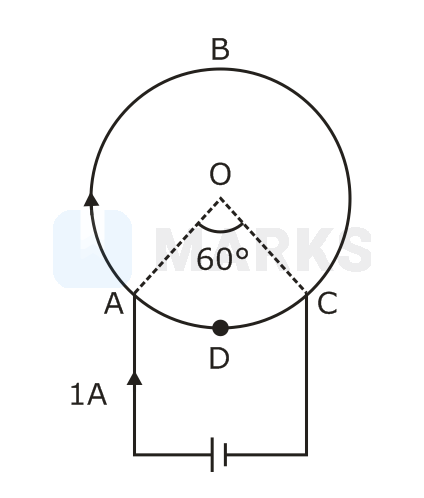

A cell is connected between the points A  and C of a circular conductor ABCD with O as centre and angle AOC=60°. If B1 and B2 are the magnitudes of the magnetic fields at O due to the currents in ABC and  ADC respectively, then ratio B1B2 is



PhysicsMagnetic Effects of CurrentJEE Main
Options:
  • A 1
  • B 2
  • C 5
  • D 6
Solution:
1157 Upvotes Verified Answer
The correct answer is: 1
currents in ABC and ADC will not be the same because of the resistance and B also depends on length .


  i 1 = 1 6 ×1= 1 6 A i 2 = 5 6 ×1= 5 6 A B ABC = μ 0 i 1 4πr = μ 0 4πr ( 1 6 )( 15 9 π ) B ADC = μ 0 i 2 4πr = μ 0 4π ( 5 6 )( π 3 )

equal and opposite magnetic field due to arc ABC & ADC , so net magnetic field at O is zero.
