A galvanometer having coil resistance 10 Ω shows a full scale deflection for a current of 3 mA . For it to measure a current of 8 A , the value of the shunt should be:

Question

A galvanometer having coil resistance 10 Ω shows a full scale deflection for a current of 3 mA . For it to measure a current of 8 A , the value of the shunt should be:, 3 × 10 - 3 Ω, 4 . 85 × 10 - 3 Ω, 3 . 75 × 10 - 3 Ω, 2 . 75 × 10 - 3 Ω

MARKS App · Accepted Answer

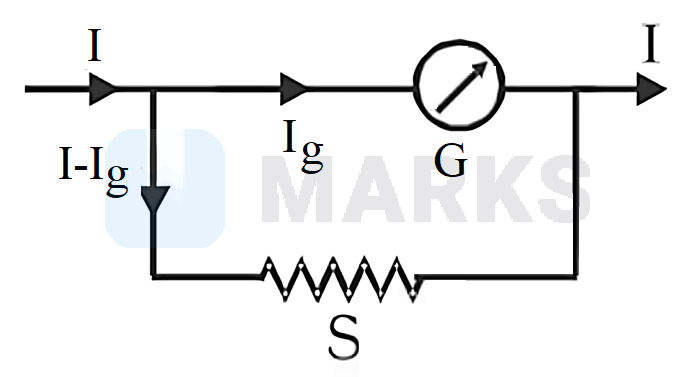

Given G = 10 Ω , I g = 3 mA and I = 8 A . Let's consider the following figure: From the figure, we have I g G = I - I g S ⇒ S = I g G I - I g ⇒ S = 3 × 10 - 3 10 8 - 0 . 003 = 3 . 75 × 10 - 3 Ω
