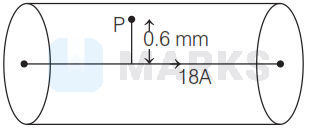

A long wire carries a current of $18 \mathrm{~A} \mathrm{kept}$ along the axis of a long solenoid of radius $1 \mathrm{~cm}$. The field due to the solenoid is $8.0 \times 10^{-3} \mathrm{~T}$. The magnitude of the resultant field at a point $0.6 \mathrm{~mm}$ from the solenoid axis is (Assume, $\mu_0=4 \pi \times 10^{-7} \mathrm{Tm} / \mathrm{A}$ )
Options:
Solution:
1125 Upvotes
Verified Answer
The correct answer is:
$10 \times 10^{-3} \mathrm{~T}$
Given, current in a long wire, $I=18 \mathrm{~A}$

magnetic field due to a solenoid,
$$
\begin{aligned}
& \qquad B_1=8 \times 10^{-3} \mathrm{~T} \\
& \text { and } r=0.6 \mathrm{~mm}=0.6 \times 10^{-3} \mathrm{~m} \\
& \text { Radius of solenoid, } R=1 \mathrm{~cm}=1 \times 10^{-2} \mathrm{~m} \\
& \text { Magnetic field due to current carrying wire at a } \\
& \text { point, } P \\
& \qquad \begin{aligned}
B_2 & =\frac{\mu_0}{2 \pi} \cdot \frac{I}{r}=2 \times 10^{-7} \times \frac{18}{0.6 \times 10^{-3}} \\
& =6 \times 10^{-3} \mathrm{~T} \quad \text { (in upward direction) }
\end{aligned}
\end{aligned}
$$
Since, current carrying wire is placed along the axis of solenoid, hence magnetic field produced by wire and magnetic field due to solenoid at point $P$, both are perpendicular to each other, Hence, the magnitude of the resultant magnetic field,
$$
\begin{aligned}
B & =\sqrt{B_1^2+B_2^2} \\
& =\sqrt{\left(8 \times 10^{-3}\right)^2+\left(6 \times 10^{-3}\right)^2} \\
& =10 \times 10^{-3} \mathrm{~T}
\end{aligned}
$$

magnetic field due to a solenoid,
$$
\begin{aligned}
& \qquad B_1=8 \times 10^{-3} \mathrm{~T} \\
& \text { and } r=0.6 \mathrm{~mm}=0.6 \times 10^{-3} \mathrm{~m} \\
& \text { Radius of solenoid, } R=1 \mathrm{~cm}=1 \times 10^{-2} \mathrm{~m} \\
& \text { Magnetic field due to current carrying wire at a } \\
& \text { point, } P \\
& \qquad \begin{aligned}
B_2 & =\frac{\mu_0}{2 \pi} \cdot \frac{I}{r}=2 \times 10^{-7} \times \frac{18}{0.6 \times 10^{-3}} \\
& =6 \times 10^{-3} \mathrm{~T} \quad \text { (in upward direction) }
\end{aligned}
\end{aligned}
$$
Since, current carrying wire is placed along the axis of solenoid, hence magnetic field produced by wire and magnetic field due to solenoid at point $P$, both are perpendicular to each other, Hence, the magnitude of the resultant magnetic field,
$$
\begin{aligned}
B & =\sqrt{B_1^2+B_2^2} \\
& =\sqrt{\left(8 \times 10^{-3}\right)^2+\left(6 \times 10^{-3}\right)^2} \\
& =10 \times 10^{-3} \mathrm{~T}
\end{aligned}
$$
