A parallel-plate capacitor with plate area A has separation d between the plates. Two dielectric slabs of dielectric constant K 1 and K 2 of same area A 2 and thickness d 2 are inserted in the space between the plates. The capacitance of the capacitor will be given by :

Question

A parallel-plate capacitor with plate area A has separation d between the plates. Two dielectric slabs of dielectric constant K 1 and K 2 of same area A 2 and thickness d 2 are inserted in the space between the plates. The capacitance of the capacitor will be given by :, ε 0 A d 1 2 + K 1 K 2 K 1 + K 2, ε 0 A d 1 2 + 2 K 1 + K 2 K 1 K 2, ε 0 A d 1 2 + K 1 + K 2 K 1 K 2, ε 0 A d 1 2 + K 1 K 2 2 K 1 + K 2

MARKS App · Accepted Answer

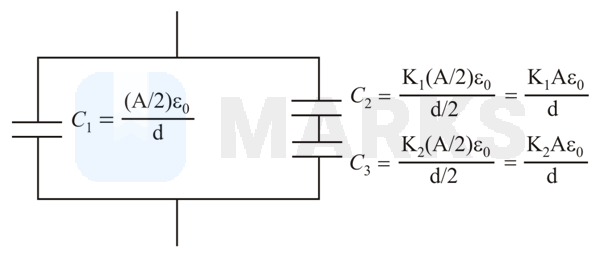

C eq = C 1 + C 2 C 3 C 2 + C 3 C eq = A ε 0 2 d + K 1 A ε 0 d × K 2 A ε 0 d K 1 A ε 0 d + K 2 A ε 0 d C eq = A ε 0 2 d + A ε 0 d K 1 K 2 K 1 + K 2 = A ε 0 d 1 2 + K 1 K 2 K 1 + K 2
