Question:
Answered & Verified by Expert
A small bulb is placed at the bottom of a tank containing water to a depth of $80 \mathrm{~cm}$. What is the area of the surface of water through which light from the bulb can emerge out? Refractive index of water is 1.33. (Consider the bulb to be a point source.)
Solution:
2739 Upvotes
Verified Answer

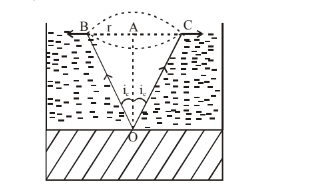

When the angle of incidence is equal to the critical angle the ray of light grazes the surface. Hence the light will appear to emerge out from a circle whose edges makes angle $i_c$ with the vertical.
The area of surface of water through which light will come out, $\mathrm{a}=\pi \mathrm{r}^2$
$$
\begin{aligned}
&\mu=\frac{1}{\sin \mathrm{i}_{\mathrm{c}}} \quad \therefore \sin \mathrm{i}_{\mathrm{c}}=\frac{1}{\mu}=\frac{1}{1.33}=0.752 \\
&\therefore \mathrm{i}_{\mathrm{c}}=48.76^{\circ}, \tan \mathrm{i}_{\mathrm{c}}=\frac{\mathrm{AB}}{\mathrm{AO}} \Rightarrow \mathrm{AB}=\mathrm{AO} \tan \mathrm{i}_{\mathrm{c}} \\
&\mathrm{r}=80 \times \tan 48.76^{\circ}=91.2 \mathrm{~cm} . \\
&\therefore \text { Area, } a=\pi \mathrm{r}^2=\pi \times(0.912)^2=2.61 \mathrm{~m}^2
\end{aligned}
$$
The area of surface of water through which light will come out, $\mathrm{a}=\pi \mathrm{r}^2$
$$
\begin{aligned}
&\mu=\frac{1}{\sin \mathrm{i}_{\mathrm{c}}} \quad \therefore \sin \mathrm{i}_{\mathrm{c}}=\frac{1}{\mu}=\frac{1}{1.33}=0.752 \\
&\therefore \mathrm{i}_{\mathrm{c}}=48.76^{\circ}, \tan \mathrm{i}_{\mathrm{c}}=\frac{\mathrm{AB}}{\mathrm{AO}} \Rightarrow \mathrm{AB}=\mathrm{AO} \tan \mathrm{i}_{\mathrm{c}} \\
&\mathrm{r}=80 \times \tan 48.76^{\circ}=91.2 \mathrm{~cm} . \\
&\therefore \text { Area, } a=\pi \mathrm{r}^2=\pi \times(0.912)^2=2.61 \mathrm{~m}^2
\end{aligned}
$$
