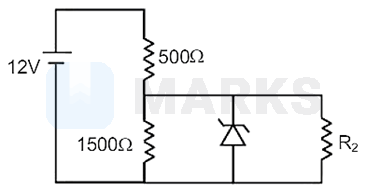

A Zener diode of Zener break-down voltage 10 V  is connected as shown in the figure. Current through Zener diode is
PhysicsSemiconductorsJEE Main
Options:
  • A 4 mA
  • B 0.6 mA
  • C 6 mA
  • D Zero
Solution:
2323 Upvotes Verified Answer
The correct answer is: Zero


If we consider break down in Zener diode, then potential across R3 will be 10 V and R1 will be 2 V .

So current in R3 will be i3=101500=2300 A

and current in R1 will be i1=2500 A

i1<i3 , which is not possible

 The potential difference across the Zener diode does not reach to break down voltage. So no current will flow through the reverse-biased Zener diode.
