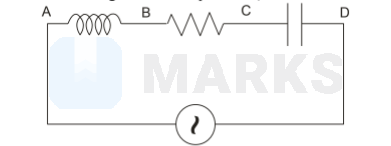

An ac voltmeter connected between points $\mathrm{A}$ and $\mathrm{B}$ in the circuit below reads $36 \mathrm{~V}$. If it is connected between $\mathrm{A}$ and $\mathrm{C}$, the reading is $39 \mathrm{~V}$. The reading when it is connected between $\mathrm{B}$ and $\mathrm{D}$ is $25 \mathrm{~V}$. What will the voltmeter read when it is connected between A and D?) Assume that the voltmeter reads true rms voltage values and that the source generated a pure ac.)
PhysicsAlternating CurrentKVPYKVPY 2015 (SB/SX)
Options:
  • A $\sqrt{481} \mathrm{~V}$
  • B 31V
  • C 61V
  • D $\sqrt{3361} \mathrm{~V}$

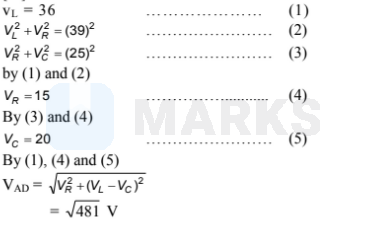

Solution:
2084 Upvotes Verified Answer
The correct answer is: $\sqrt{481} \mathrm{~V}$
