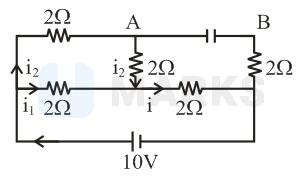

An ideal cell of emf 10 V is connected in circuit shown in figure. Each resistance is 2 Ω . The potential difference (in V ) across the capacitor when it is fully charged is _____________

Question

An ideal cell of emf 10 V is connected in circuit shown in figure. Each resistance is 2 Ω . The potential difference (in V ) across the capacitor when it is fully charged is _____________,

MARKS App · Accepted Answer

i = 10 4 3 + 2 = 10 × 3 10 = 3 Amp i 1 = 2 A & i 2 = 1 A V AB = 1 × 2 + 3 × 2 = 8 V
