Consider the circuit given below

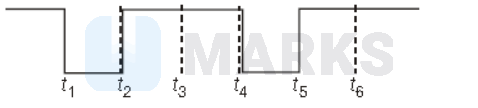

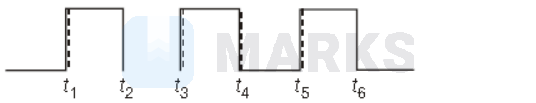

Choose the sketch depicting the output $Y$ of this circuit having inputs $A$ and $B$ as given below
Options:
Choose the sketch depicting the output $Y$ of this circuit having inputs $A$ and $B$ as given below
- A
- B
- C
- D
Solution:
2275 Upvotes
Verified Answer
The correct answer is:

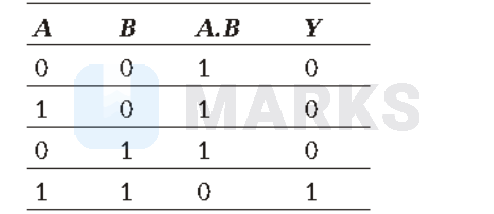

Truth table for the given diagram
From 0 to $t_2$,
$$
A=1, B=1 \text {, so } Y=1
$$
From $t_1$ to $t_2$
$$
A=0, B=0 \text {, so } Y=0
$$
From $t_2$ to $t_3$,
$$
A=1, B=0, \text { so } Y=0
$$
From $t_3$ to $t_4$,
$$
A=0, B=1, \text { so } Y=0
$$
From $t_4$ to $t_5$,
$$
A=1, B=1 \text {, so } Y=1
$$
From $t_5$ to $t_6$
$$
A=0, B=0 \text {, so } Y=0
$$
From 0 to $t_2$,
$$
A=1, B=1 \text {, so } Y=1
$$
From $t_1$ to $t_2$
$$
A=0, B=0 \text {, so } Y=0
$$
From $t_2$ to $t_3$,
$$
A=1, B=0, \text { so } Y=0
$$
From $t_3$ to $t_4$,
$$
A=0, B=1, \text { so } Y=0
$$
From $t_4$ to $t_5$,
$$
A=1, B=1 \text {, so } Y=1
$$
From $t_5$ to $t_6$
$$
A=0, B=0 \text {, so } Y=0
$$
