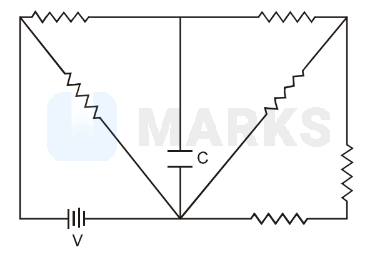

Consider the circuit shown in the figure below :
All the resistors are identical. The charge stored in the capacitor, once it is fully charged, is
Options:
All the resistors are identical. The charge stored in the capacitor, once it is fully charged, is
Solution:
1585 Upvotes
Verified Answer
The correct answer is:
$\frac{5}{8} \mathrm{CV}$

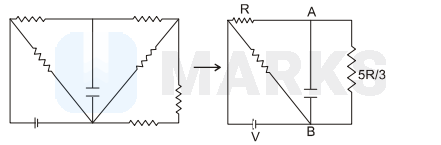

$V_{A B}=\frac{5 \frac{R}{3}}{\frac{5 R}{3}+R} \times V=\frac{5}{8} V$
$Q=\frac{5}{8} C V$
