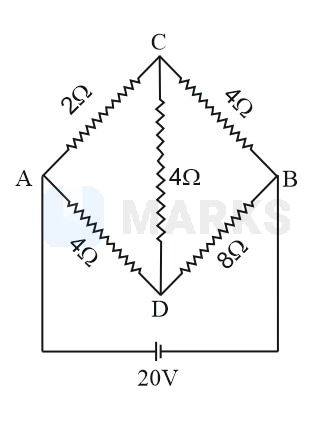

Consider the circuit shown in the figure.


Which of the following statements are correct ?
PhysicsCurrent ElectricityJEE Main
Options:
  • A Current through the battery is 5 A

  • B Current through branch AD is 2 A
  • C Current through branch BC is 3 A
  • D The potential difference between points D and C is 4 V
Solution:
2514 Upvotes Verified Answer
The correct answer is: Current through the battery is 5 A



By using the concept of Wheatstone bridge
VD – VC = 0
∴ Req=12×612+6=4 Ω
∴ Ibattery=204=5 A
