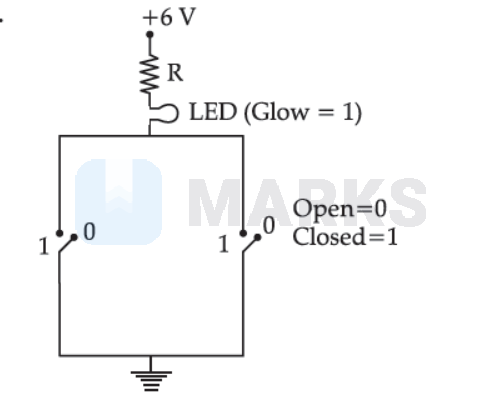

Identify the equivalent logic gate represented by the given circuit:
Solution:
1952 Upvotes
Verified Answer
The correct answer is:
$\mathrm{OR}$
As per question, the current flows only when the switch is $\mathrm{ON}$.
The truth table represents the OR Gate.
The truth table represents the OR Gate.
