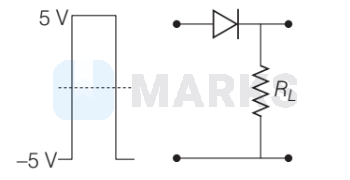

If in a $p$ - $n$ junction diode, a square input signal of $10 \mathrm{~V}$ is applied as shown
Then, the output signal across $R_L$ will be
Options:
Then, the output signal across $R_L$ will be
- A
- B
- C
- D
Solution:
2298 Upvotes
Verified Answer
The correct answer is:
Diode works on the principle that,
In forward bias $=$ Diode is $\mathrm{ON}$
In reverse bias $=$ Diode is OFF
So, a diode only allows positive input and discard negative input. Therefore, the output is obtained only for the positive input.
In forward bias $=$ Diode is $\mathrm{ON}$
In reverse bias $=$ Diode is OFF
So, a diode only allows positive input and discard negative input. Therefore, the output is obtained only for the positive input.
