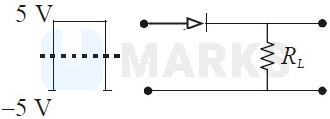

If in a p - n junction diode, a square input signal of 10 V is applied as shown Then the output signal across R L will be

Open MARKS Web Download App

Search any question & find its solution

Question: Answered & Verified by Expert

If in a

p - n

junction diode, a square input signal of

10 V

is applied as shown

Then the output signal across

R_{L}

will be

PhysicsSemiconductorsNEET

Options:

A
B
C
D

Solution:

2733 Upvotes Verified Answer

The correct answer is:

The current will flow through

R_{L}

when the diode is forward biased.
