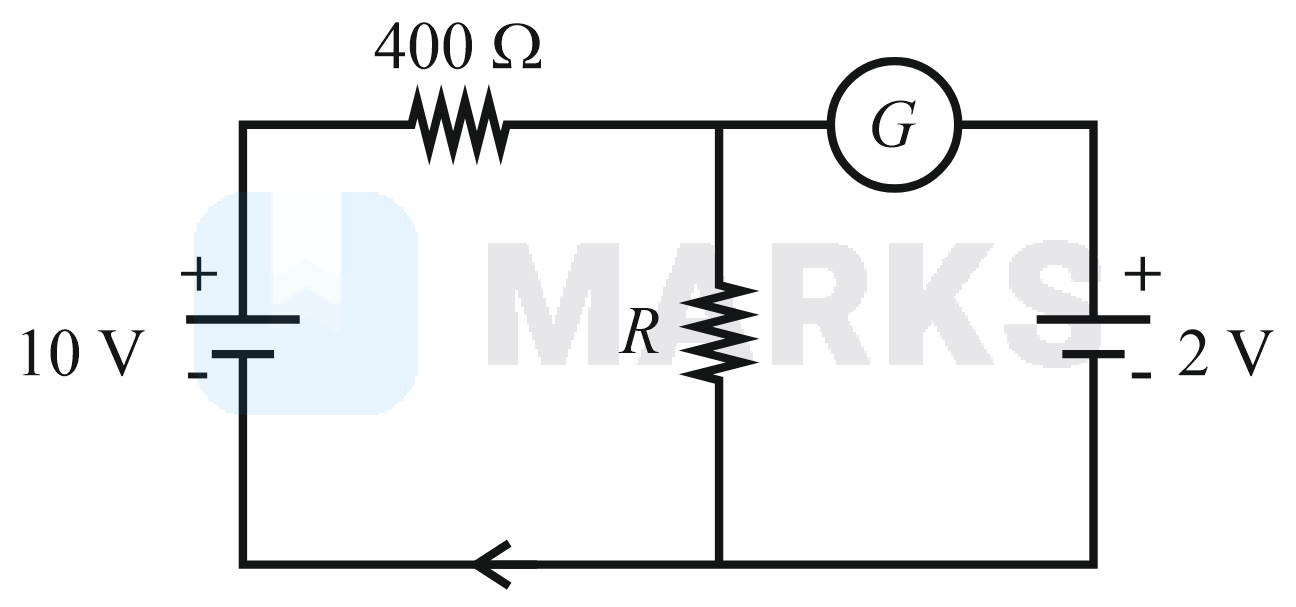

If the galvanometer G does not show any deflection in the circuit shown, the value of R is given by:

PhysicsCurrent ElectricityNEETNEET 2023 (All India)
Options:
  • A 400 Ω
  • B 200 Ω
  • C 50 Ω
  • D 100 Ω
Solution:
1064 Upvotes Verified Answer
The correct answer is: 100 Ω

As given in the question,

Ig=0

Potential drop across R will be equal to 2 V.

Now, current through the left circuit can be written as,

I=10400+R.

Therefore, potential drop across R will be,

VR=IR2=10R400+R800+2R=10RR=100 Ω
