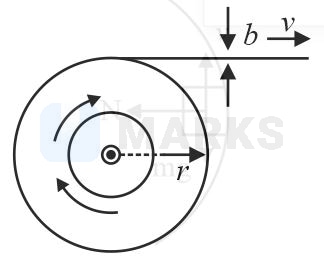

In a continuous printing process, paper roll is wrapped on a cylindrical core which is free to rotate about a fixed horizontal axis. The paper is drawn into the process at a constant speed v, as shown in the figure. If r is the radius of paper on the roll at any given time and b is the thickness of the paper, then the angular acceleration of the roll at this instant is

PhysicsRotational MotionJEE Main
Options:
  • A v2b2π2r3
  • B

    zero because v is constant

  • C v2b2πr3
  • D cannot be calculated from given information
Solution:
1205 Upvotes Verified Answer
The correct answer is: v2b2πr3

In a continuous printing process suppose the total length of paper is l.

If r1 is the inner radius of roll then, πr2-πr12=l×b             ...(i)
And at this moment, v=rω     ...(ii)


Differentiating equation (i) w.r.t. time,
π×2rdrdt=dldt·b
drdt=v.b2πr          ...(iii)

Differentiating equation (ii) w.r.t time
dvdt=rdωdt+ωdrdt
0=rα+ωdrdt           drdtis-ve
drdt=rαω
α=ωrdrdt           ...(iv)

Using (iii) and (iv), vb.ω2πr2=v2b2πr3=α
