In a uniformly charged sphere of total charge $Q$ and radius $R$, the electric field $E$ is plotted as function of distance from the centre of the sphere. The graph which would correspond to the above description will be
Options:
- A
- B
- C
- D
Solution:
2365 Upvotes
Verified Answer
The correct answer is:
Electric field due to a uniformly charged non-conducting solid sphere of radius $R$ is given as
$E= \begin{cases}\frac{1}{4 \pi \varepsilon_0} \cdot \frac{Q r}{R^3} ; & \text { for } r < R \\ \frac{1}{4 \pi \varepsilon_0} \cdot \frac{Q}{r^2} \quad ; & \text { for } r \geq R\end{cases}$

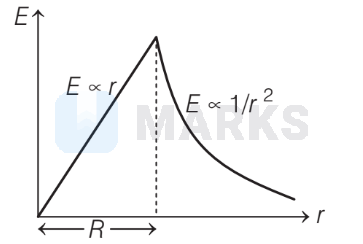

Hence, graph for electric field versus distance $r$ for a non-conducting solid sphere is given as
$E= \begin{cases}\frac{1}{4 \pi \varepsilon_0} \cdot \frac{Q r}{R^3} ; & \text { for } r < R \\ \frac{1}{4 \pi \varepsilon_0} \cdot \frac{Q}{r^2} \quad ; & \text { for } r \geq R\end{cases}$
Hence, graph for electric field versus distance $r$ for a non-conducting solid sphere is given as
