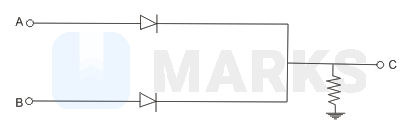

In the circuit below,

A

and

B

represent two inputs and

C

represents the output. The circuit represents

PhysicsSemiconductorsNEET

Options:

A $OR$ gate
B $NOR$ gate
C $AND$ gate
D $NAND$ gate

Solution:

1742 Upvotes Verified Answer

The correct answer is:

OR

gate

It is

OR

gate. When either of input is high, the diode conducts and output is high.

Truth table for $OR$ gate
A	B	C
0	0	0
0	1	1
1	0	1
1	1	1
