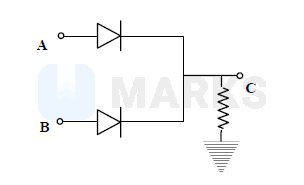

In the circuit below, $A$ and $B$ represent two inputs and $C$ represents the output. The circuit represents
Options:
Solution:
1762 Upvotes
Verified Answer
The correct answer is:
OR gate
OR gate
\begin{array}{l|l|l}
\mathrm{A} & \mathrm{B} & \mathrm{C} \\
\hline 0 & 0 & 0 \\
\hline 0 & 1 & 1 \\
\hline 1 & 0 & 1 \\
\hline 1 & 1 & 1
\end{array}
\mathrm{A} & \mathrm{B} & \mathrm{C} \\
\hline 0 & 0 & 0 \\
\hline 0 & 1 & 1 \\
\hline 1 & 0 & 1 \\
\hline 1 & 1 & 1
\end{array}
