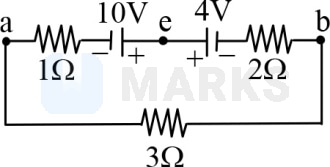

In the circuit diagram shown below, the magnitude and direction of the flow of current, respectively, would be

Question

In the circuit diagram shown below, the magnitude and direction of the flow of current, respectively, would be, 7 3 A from a to b via e, 7 3 A from b to a via e, 1 A from b to a via e, 1 A from a to b via e

MARKS App · Accepted Answer

I = 10 – 4 1 + 2 + 3 = 1 A (Clockwise so a to b via e )
