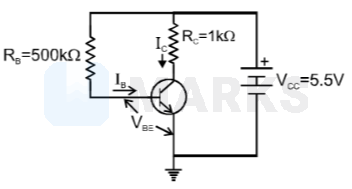

In the circuit shown in figure, the base current I B is 10 μA and the collector current is 5 . 2 mA . The voltage ( V BE ) across the base and emitter is

Question

In the circuit shown in figure, the base current I B is 10 μA and the collector current is 5 . 2 mA . The voltage ( V BE ) across the base and emitter is, 0 . 1 V, 0 . 5 V, 0 . 25 V, 0 . 7 V

MARKS App · Accepted Answer

V B E = V C C - I B R B V B E = 5 . 5 - 10 × 10 - 6 × 5 × 10 5 = 0 . 5 V
