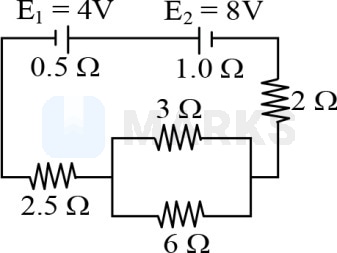

In the circuit shown in the figure below the cells E1 and E2 have e.m.f. 4 V and 8 V and internal resistance 0.5 Ω and 1.0 Ω respectively. Then the potential difference across the cell E1 and E2 will be-

PhysicsCurrent ElectricityNEET
Options:
  • A 3.75 V, 7.5 V
  • B 4.25 V, 7.5 V
  • C 3.75 V, 3.75 V
  • D 4.25 V, 4.25 V
Solution:
1686 Upvotes Verified Answer
The correct answer is: 4.25 V, 7.5 V
Equivalent resistance of circuit is :

Req=Ω

So, I=8-48=0.5 A

V8V=E- Ir=8-0.51=7.5 V

V4V=E+Ir=4+0.50.5=4.25 V
