In the combination of the following gates the output Y can be written in terms of inputs A and B as

Open MARKS Web Download App

Search any question & find its solution

Question: Answered & Verified by Expert

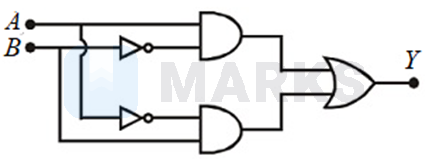

In the combination of the following gates the output

Y

can be written in terms of inputs

A

and

B

as

PhysicsSemiconductorsNEETNEET 2018

Options:

A $\bar{A . B} + A . B$
B $\bar{A + B}$
C $A . \bar{B} + \bar{A} . B$
D $\bar{A . B}$

Solution:

1008 Upvotes Verified Answer

The correct answer is:

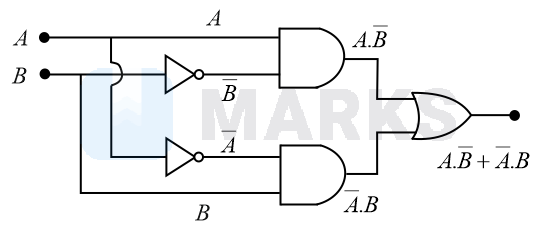

A . \bar{B} + \bar{A} . B

Y = (A . \bar{B} + \bar{A} . B)
