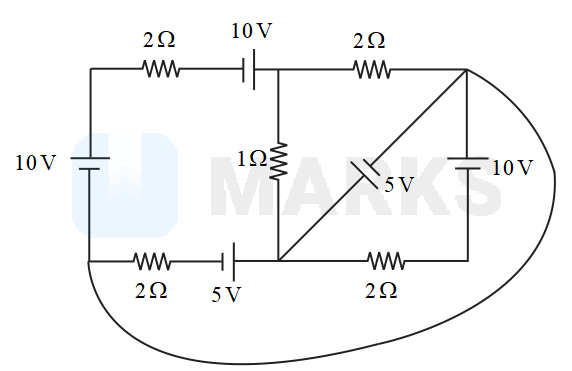

In the given circuit diagram the current through the 1 Ω resistor is I . Find the value of 2 I (in A )?

Open MARKS Web Download App

Search any question & find its solution

Question: Answered & Verified by Expert

In the given circuit diagram the current through the

1 Ω

resistor is

I

. Find the value of

2 I

(in

A

)?

PhysicsCurrent ElectricityJEE Main

Solution:

1263 Upvotes Verified Answer

The correct answer is: 5

$\frac{V - 20}{2} + \frac{V}{2} + V - 5 = 0$

$V - 20 + V + 2 (V - 5) = 0 \Rightarrow 4 V - 20 - 10 = 0$

$V = \frac{30}{4} = \frac{15}{2} V$
$I = \frac{15 - 10}{2} = \frac{5}{2} A \Rightarrow 2 I = 5 A$
