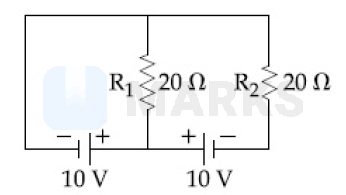

In the given circuit the cells have zero internal resistance. The currents (in amperes) passing through resistance R 1 and R 2 respectively, are:

Question

In the given circuit the cells have zero internal resistance. The currents (in amperes) passing through resistance R 1 and R 2 respectively, are:, 0 , 1, 2 , 2, 0.5 , 0, 1 , 2

MARKS App · Accepted Answer

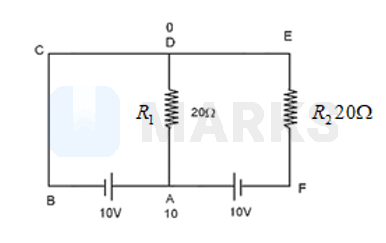

Assume V F as 0 a s V E = V B ⇒ Current in R 2 is zero V A - V D = 10 V ⇒ I = 10 20 = 1 2 A from A to D
