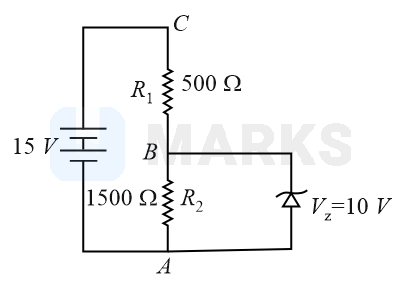

In the given circuit the current through zener diode is:

Question

In the given circuit the current through zener diode is:, 3 . 3 mA, 2 . 5 mA, 5 . 5 mA, 6 . 7 mA

MARKS App · Accepted Answer

V AB = 10 V ∴ V BC = 5 V , the current in R 1 = I 1 = 5 500 ⇒ I 1 = 10 mA . Current in R 2 = I 2 = 10 1500 ⇒ I 2 = 20 3 m A Current in zener diode = I 1 - I 2 = 10 - 20 3 mA = 10 3 mA
