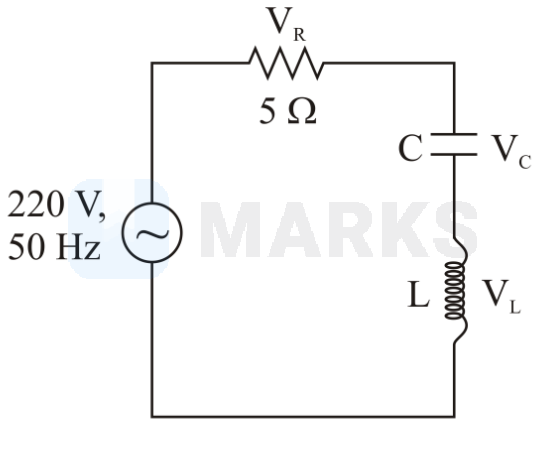

In the given circuit, the magnitude of VL and VC are twice that of VR. Given that f=50 Hz, the inductance of the coil is 1 Kπ mH. The value of K is _____ .

PhysicsAlternating CurrentJEE MainJEE Main 2022 (28 Jun Shift 2)
Solution:
1897 Upvotes Verified Answer
The correct answer is: 0

Since the voltage across the inductor and capacitor is same, the circuit is in resonance. Therefore, the current in the circuit will be,

i=VR=2205=44 A.

The voltage across the inductor is double that across the resistor. Therefore, VL=2VR=440 V.

We know that VL=iXL=i×2πfLL=44044×100π=110π H=100πmH

Therefore, K=1100=0.010.
