In the logic circuit given below; if X = 1 and Y = 1 then the values of P , Q and R are

Open MARKS Web Download App

Search any question & find its solution

Question: Answered & Verified by Expert

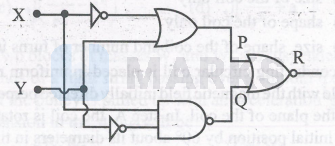

In the logic circuit given below; if $X=1$ and $Y=1$ then the values of $\mathrm{P}, \mathrm{Q}$ and $\mathrm{R}$ are

PhysicsSemiconductorsTS EAMCETTS EAMCET 2023 (13 May Shift 2)

Options:

A $\mathrm{P}=1, \mathrm{Q}=1, \mathrm{R}=0$
B $\mathrm{P}=0, \mathrm{Q}=1, \mathrm{R}=0$
C $P=1, Q=0, R=1$
D $P=1, Q=1, R=1$

Solution:

2970 Upvotes Verified Answer

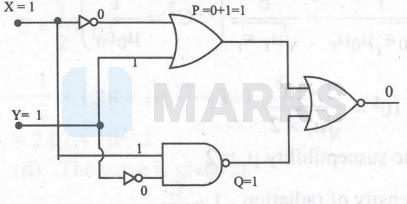

The correct answer is: $\mathrm{P}=1, \mathrm{Q}=1, \mathrm{R}=0$
