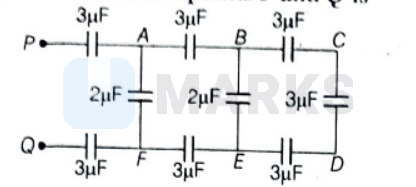

In the network shown in figure, the equivalent capacitance between points $P$ and $Q$ is
Options:
Solution:
1294 Upvotes
Verified Answer
The correct answer is:
$1 \mu \mathrm{F}$

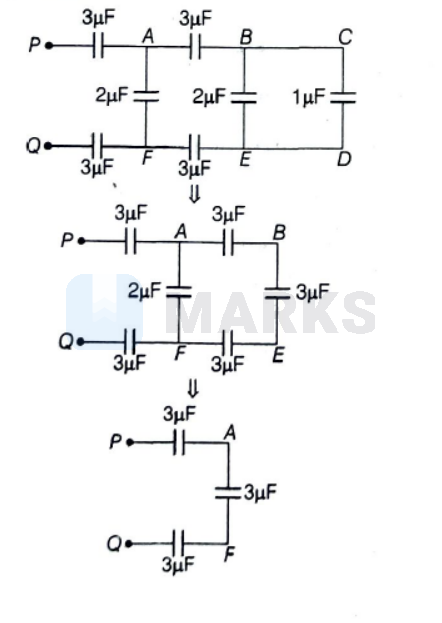

The given network can be simplified as shown in following figure
The equivalent capacitance between $P$ and $Q$ is given by
$$
\begin{aligned}
& \frac{1}{C_{\text {eq }}}=\frac{1}{3}+\frac{1}{3}+\frac{1}{3}=1 \mu \mathrm{F} \\
& C_{\text {eq }}=1 \mu \mathrm{F}
\end{aligned}
$$
The equivalent capacitance between $P$ and $Q$ is given by
$$
\begin{aligned}
& \frac{1}{C_{\text {eq }}}=\frac{1}{3}+\frac{1}{3}+\frac{1}{3}=1 \mu \mathrm{F} \\
& C_{\text {eq }}=1 \mu \mathrm{F}
\end{aligned}
$$
