Match List-I with List-II List-i List-II a Phase difference between current and voltage in a purely resistive AC circuit i π 2 ; current leads voltage b Phase difference between current and voltage in a pure inductive AC circuit ii zero c Phase difference between current and voltage in a pure capacitive AC circuit iii π 2 ; current lags voltage d Phase difference between current and voltage in an LCR series circuit iv tan - 1 X C - X L R Choose the most appropriate answer from the options given below :

Question

Match List-I with List-II List-i List-II a Phase difference between current and voltage in a purely resistive AC circuit i π 2 ; current leads voltage b Phase difference between current and voltage in a pure inductive AC circuit ii zero c Phase difference between current and voltage in a pure capacitive AC circuit iii π 2 ; current lags voltage d Phase difference between current and voltage in an LCR series circuit iv tan - 1 X C - X L R Choose the most appropriate answer from the options given below :, ( a ) - ( i ) , ( b ) - ( iii ) , ( c ) - ( iv ) , ( d ) - ( ii ), ( a ) - ( ii ) , ( b ) - ( iv ) , ( c ) - ( iii ) , ( d ) - ( i ), ( a ) - ( ii ) , ( b ) - ( iii ) , ( c ) - ( iv ) , ( d ) - ( i ), ( a )-( ii ) , ( b ) - ( iii ) , ( c ) - ( i ) , ( d ) - ( iv )

MARKS App · Accepted Answer

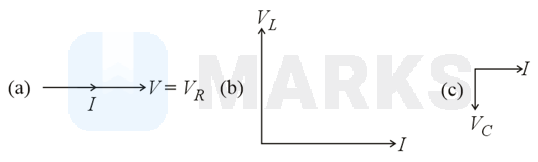

(d) tan ϕ = V L - V C V R = X L - X C R

Search any question & find its solution

Looking for more such questions to practice?

	List-i		List-II
a	Phase difference between current and voltage in a purely resistive AC circuit	i	$\frac{π}{2};$ current leads voltage
b	Phase difference between current and voltage in a pure inductive AC circuit	ii	zero
c	Phase difference between current and voltage in a pure capacitive AC circuit	iii	$\frac{π}{2};$ current lags voltage
d	Phase difference between current and voltage in an LCR series circuit	iv	$\tan^{- 1} (\frac{X_{C} - X_{L}}{R})$
