Output of the given circuit is, A ⋅ B, A ⋅ B, A ˉ + B ˉ, A + B

: Y = A ˉ + B ˉ = A ˉ ⋅ B ˉ = A ⋅ B

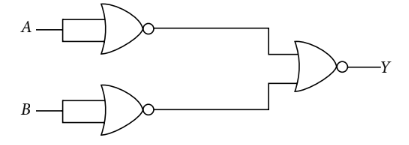

Output of the given circuit is

Question: Answered & Verified by Expert

Output of the given circuit is

PhysicsSemiconductorsAIIMSAIIMS 2018 (26 May)

Options:

Solution:

1817 Upvotes Verified Answer

The correct answer is: $A \cdot B$

$: Y=\overline{\bar{A}+\bar{B}}=\overline{\bar{A}} \cdot \overline{\bar{B}}=A \cdot B$
