Question: Answered & Verified by Expert

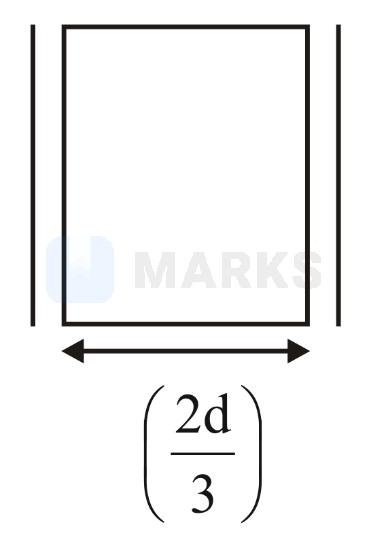

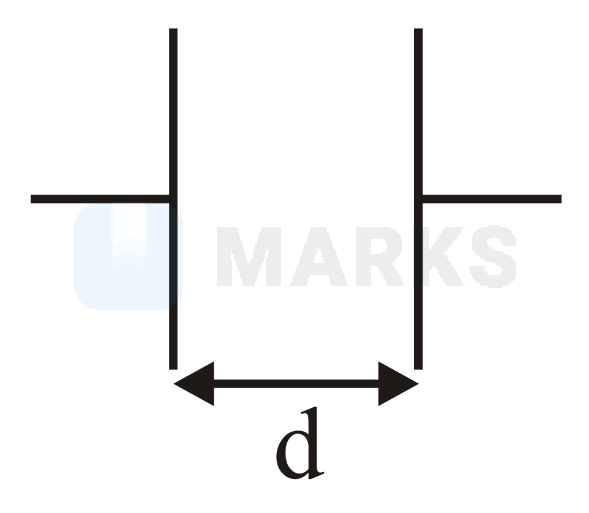

The distance between two plates of a capacitor is d and its capacitance is C1, when air is the medium between the plates. If a metal sheet of thickness 2d3 and of the same area as plate is introduced between the plates, the capacitance of the capacitor becomes C2 . The ratio C2C1 is
PhysicsCapacitanceJEE MainJEE Main 2023 (10 Apr Shift 2)
Options:
  • A 3 : 1
  • B 2 : 1
  • C 4 : 1
  • D 1 : 1
Solution:
2710 Upvotes Verified Answer
The correct answer is: 3 : 1

The formula of capacitance is C1=ε0Ad

The dielectric constant of metal sheet is Kmetal=

The new value of capacitance is

C2=ε0Ad-t+tKmetal=ε0Ad-2d3+0=3C1

Clearly, the ratio,

C2C1=3C1C1=3:1
