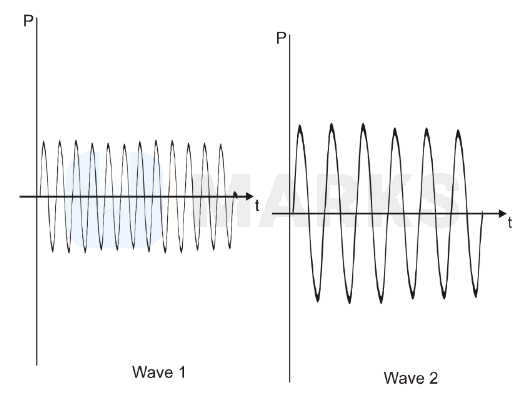

The figure below shows pressure variation in two different sound waves in air with time at a given position. Both the figures are drawn to the same scale.


Which of the following statements is true?
PhysicsWaves and SoundKVPYKVPY 2013 (SB/SX)
Options:
  • A Wave 1 has lower frequency and smaller amplitude compared to wave 2
  • B Wave 1 has higher frequency and greater amplitude compared to wave 2
  • C Wave 1 has shroter wavelength and greater amplitude compared to wave 2
  • D Wave 1 has shorter wavelength and smaller amplitude compared to wave 2
Solution:
1023 Upvotes Verified Answer
The correct answer is: Wave 1 has shorter wavelength and smaller amplitude compared to wave 2
No Solution
