Question: Answered & Verified by Expert
The network shown in the figure is part of a complete circuit. If at a certain instant the current I is 5 A and is decreasing at a rate of 103 A s-1, then the value of VB-VA is

PhysicsAlternating CurrentNEET
Options:
  • A 10 V
  • B 20 V
  • C 15 V
  • D 25 V
Solution:
1920 Upvotes Verified Answer
The correct answer is: 15 V
 didt=103 A/s



Therefore induced emf across inductance, e=Ldidt
e=5×10-3103=5 V

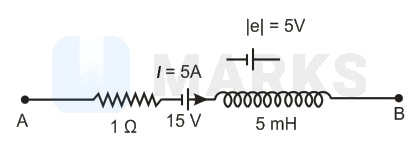

Since, the current is decreasing, the polarity of this emf would be so as to increase the existing current. The circuit can be redrawn as



Now, VA-5+15+5=VB

 VB-VA=15 V
