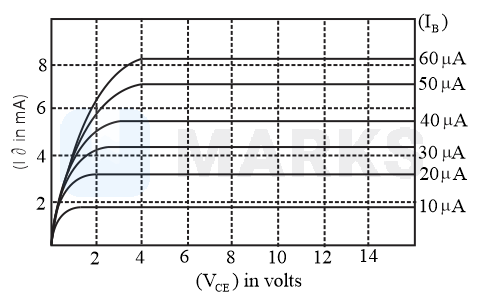

The output characteristics of a transistor is shown in the figure. When VCE is 10V and IC=4.0mA, then value of βac is



PhysicsSemiconductorsJEE MainJEE Main 2020 (06 Sep Shift 2)
Solution:
2032 Upvotes Verified Answer
The correct answer is: 150

From the formula of current gain, β=ΔiCΔiBVCE=10

ΔiC=4.5-3 mA

ΔiC=1.5 mA

ΔiC=1.5×10-3 A

ΔiB=30-20 μA

ΔiB=10 μA

ΔiB=10×10-6 A

ΔiB=10-5 A

β=ΔiCΔiBVCE=10=1.5×10-310-5

β=1.5×10-3×105

β=150
