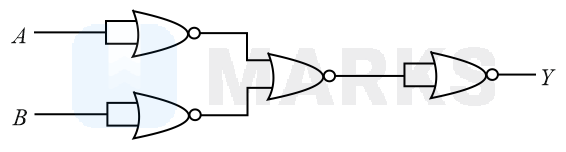

The output of the given combination gates represents:

PhysicsSemiconductorsJEE MainJEE Main 2021 (17 Mar Shift 1)
Options:
  • A XOR Gate
  • B NAND Gate
  • C AND Gate
  • D NOR Gate
Solution:
1262 Upvotes Verified Answer
The correct answer is: NAND Gate

By De Morgan's theorem, we have

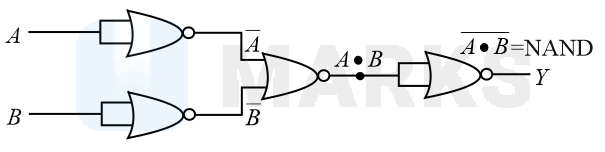

Here the output of A and B gives A¯ and B¯. This output is fed as inputs to NAND gate and the output is A·B, when when again fed as input to NAND gate to get output as A·B¯.
