Question:
Answered & Verified by Expert

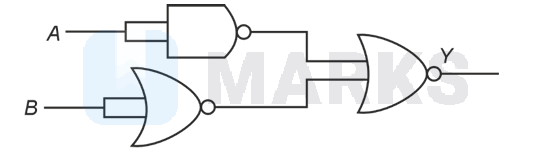

The output ( $Y$ ) of the given logic gate is similar to the output of an/a
Options:
Solution:
2461 Upvotes
Verified Answer
The correct answer is:
AND gate

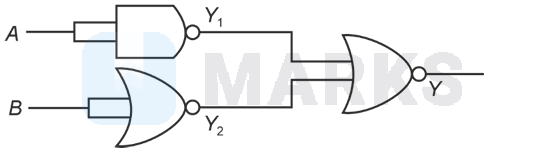

$\begin{aligned} Y_1 & =\overline{A \cdot A} \\ & =\bar{A} \\ Y_2 & =\overline{B+B} \\ & =\bar{B}\end{aligned}$
$\begin{aligned}
Y & =\overline{Y_1+Y_2} \\
& =\overline{\bar{A}+\bar{B}} \\
& =\overline{\bar{A}} \cdot \overline{\bar{B}}
\end{aligned}$
$=A \cdot B$ is similar to output of AND Gate
