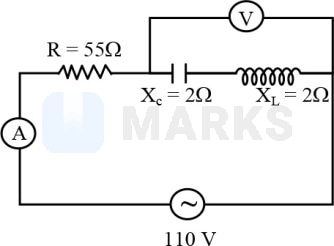

The reading of the ammeter and voltmeter are (Both the instruments are ac meters and measures rms value) -

Question

The reading of the ammeter and voltmeter are (Both the instruments are ac meters and measures rms value) -, 2 A , 110 V, 2 A , 0 V, 2 A , 55 V, 1 A , 0 V

MARKS App · Accepted Answer

The circuit is R L C resonant circuit. ∴ R e a d i n g o f v o l t m e t e r = V L - V C = 0 R e a d i n g o f a m m e t e r = E r m s Z = E r m s R = 110 55 = 2 A
