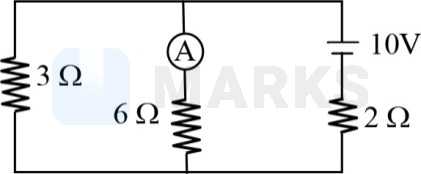

The reading of the ideal ammeter will be (Resistance of ideal ammeters is zero)

PhysicsCurrent ElectricityJEE Main

Options:

A $\frac{5}{6} A$
B $\frac{6}{5} A$
C $\frac{3}{2} A$
D $\frac{2}{3} A$

Solution:

2338 Upvotes Verified Answer

The correct answer is:

\frac{5}{6} A

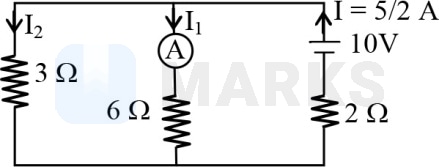

$R_{e q} = 3 ∥ 6 + 2 = 2 + 2 = 4 Ω$

Current from Battery, $I = \frac{V}{R_{e q}} = \frac{10}{4} = 2.5 A$

$I_{1} = 2.5 \times \frac{3}{3 + 6} = \frac{5}{6} A$
