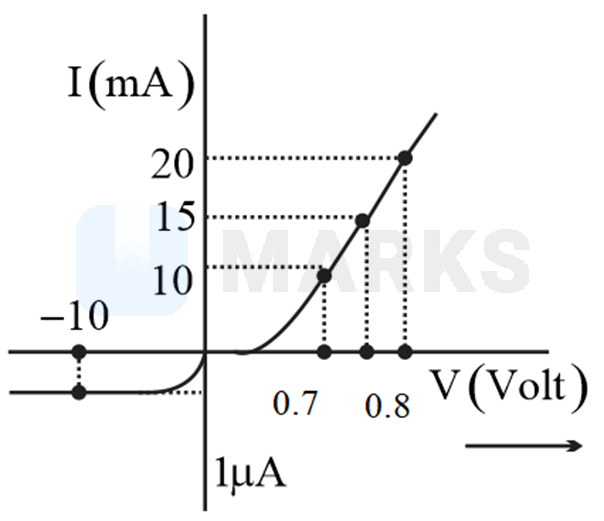

The V - I characteristic of a diode is shown in the figure. The ratio of forward to reverse bias resistance is:

Question

The V - I characteristic of a diode is shown in the figure. The ratio of forward to reverse bias resistance is:, 10, 10 - 6, 10 6, 100

MARKS App · Accepted Answer

Forward bias resistance = Δ V Δ I = 0.1 10 × 10 − 3 = 10 Ω Reverse bias resistance = 10 10 − 6 = 10 7 Ω Ratio of resistances = Forward bias resistance Reverse bias resistance = 10 − 6
