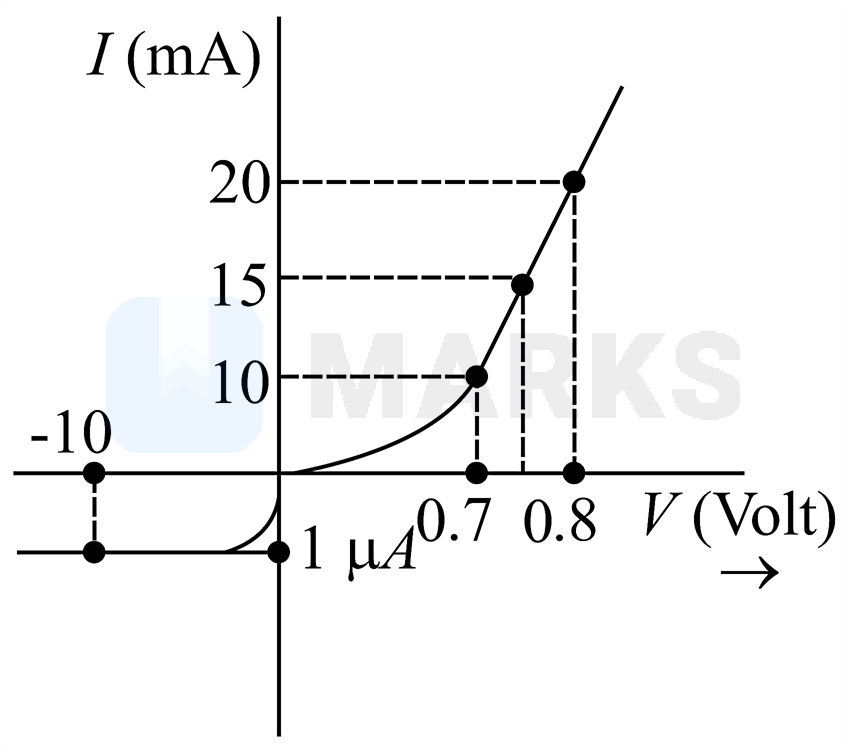

The V - I characteristic of a diode is shown in the figure. The ratio of forward to reverse bias resistance is:

Question

The V - I characteristic of a diode is shown in the figure. The ratio of forward to reverse bias resistance is:, 100, 10 6, 10 - 6, 10

MARKS App · Accepted Answer

Forward bias resistance R 1 = 0.8 - 0.7 20 - 10 × 10 - 3 = 0.1 10 × 10 - 3 = 10 Ω . Reverse bias resistance R 2 = 10 10 - 6 = 10 7 Ω . R 1 R 2 = 10 - 6 .
