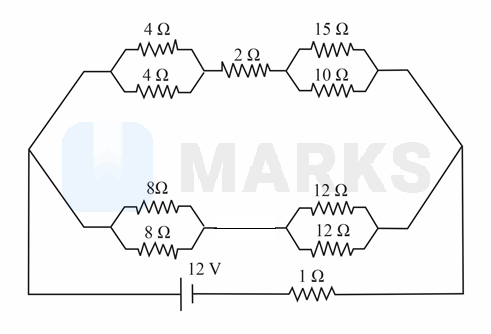

The voltage drop across 15 Ω resistance in the given figure will be _______ V .

Open MARKS Web Download App

Search any question & find its solution

Question: Answered & Verified by Expert

The voltage drop across

15 Ω

resistance in the given figure will be _______

V .

PhysicsCurrent ElectricityJEE MainJEE Main 2021 (31 Aug Shift 1)

Solution:

1728 Upvotes Verified Answer

The correct answer is: 6

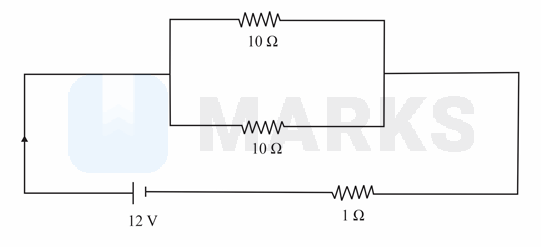

equivalent circuit

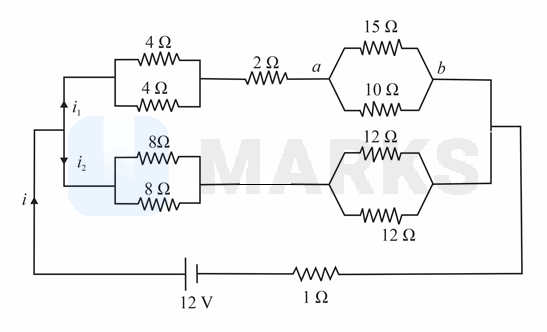

$i = \frac{12}{6} = 2 A$
$i_{1} = i_{2} = i / 2 = 1 A$
$V_{15 Ω} = i_{1} \times R_{a b} = 1 \times 6 = 6 V$
