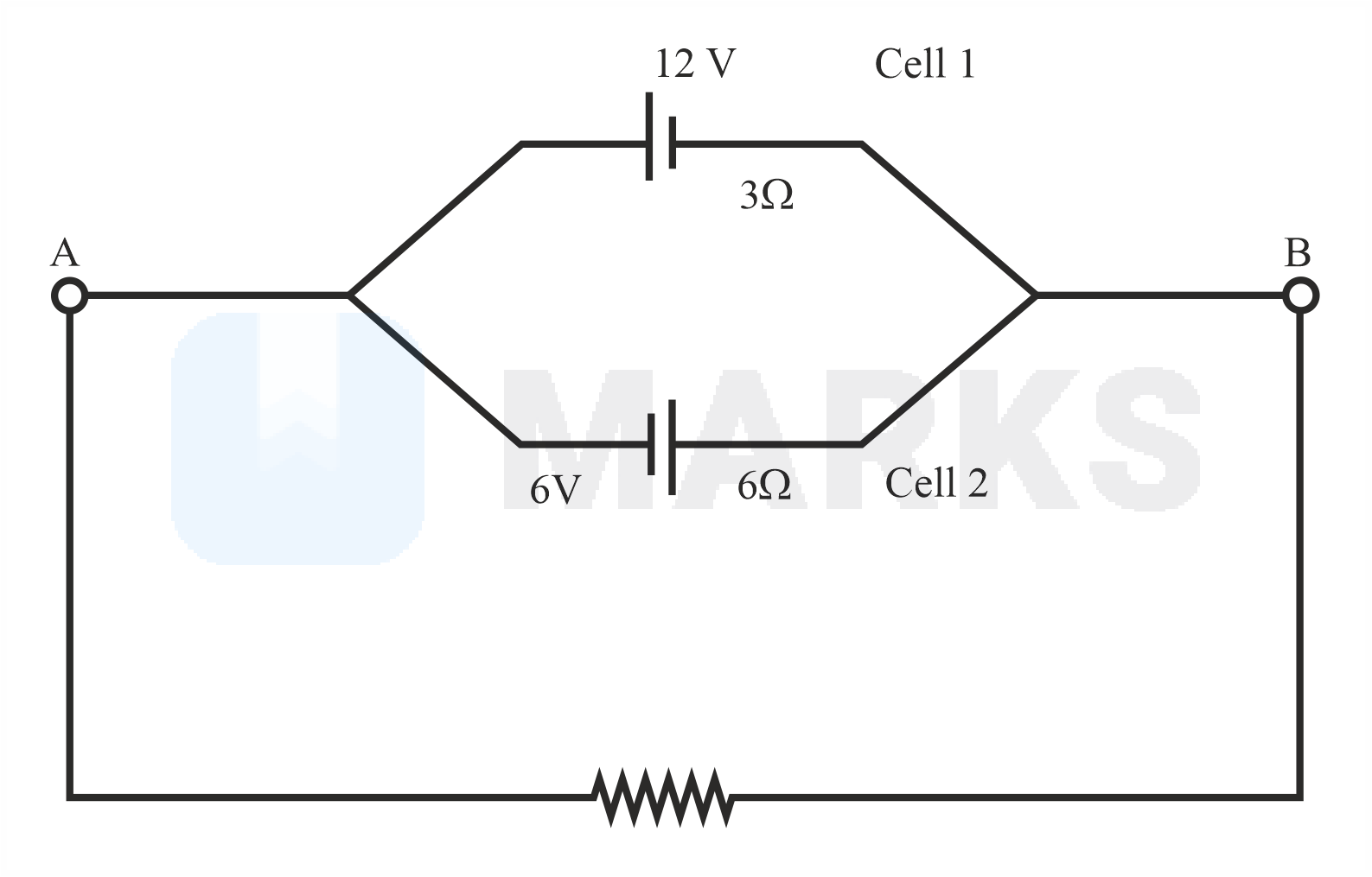

Two cells are connected between points A and B as shown. Cell 1 has emf of 12 V and internal resistance of 3 Ω. Cell 2 has emf of 6 V and internal resistance of 6 Ω. An external resistor R of 4 Ω is connected across A and B. The current flowing through R will be ______ A.



PhysicsCurrent ElectricityJEE MainJEE Main 2023 (25 Jan Shift 2)
Solution:
2164 Upvotes Verified Answer
The correct answer is: 1

Equivalent internal resistance of two cells in parallel is req=r1r2r1+r2=3×63+6=2 Ω

Equivalent emf of given cells

 Eeq=E1r1-E2r2req=123-662=6 V

Given: R=4 Ω

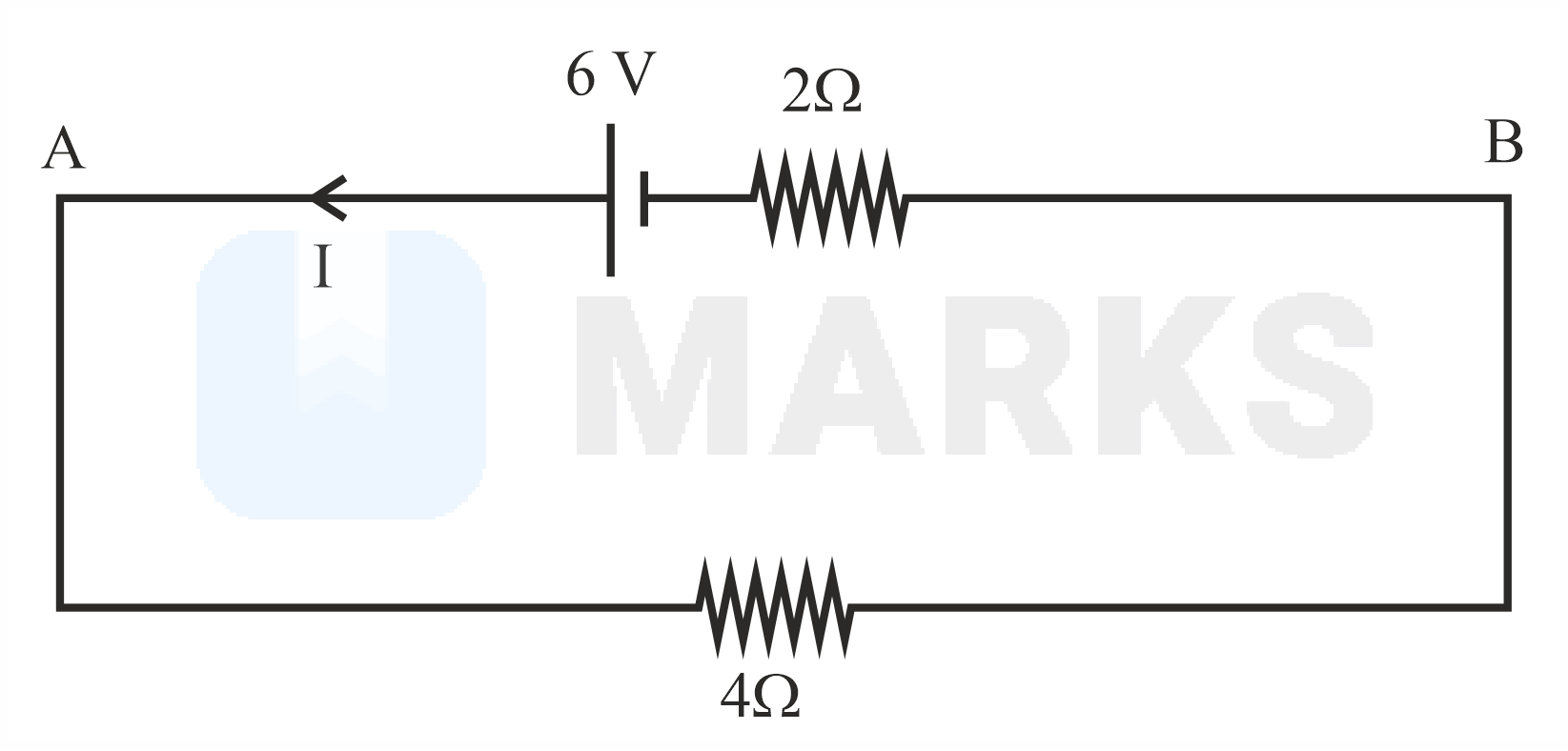

The circuit can be redrawn as shown below.

Current through resistor R is I=62+4=1 A.
