Two charged thin infinite plane sheets of uniform charge density σ + and σ - , where σ + σ − , intersect at the right angle. Which of the following best represents the electric field lines for the system:

Question

Two charged thin infinite plane sheets of uniform charge density σ + and σ - , where σ + > σ − , intersect at the right angle. Which of the following best represents the electric field lines for the system:, , , ,

MARKS App · Accepted Answer

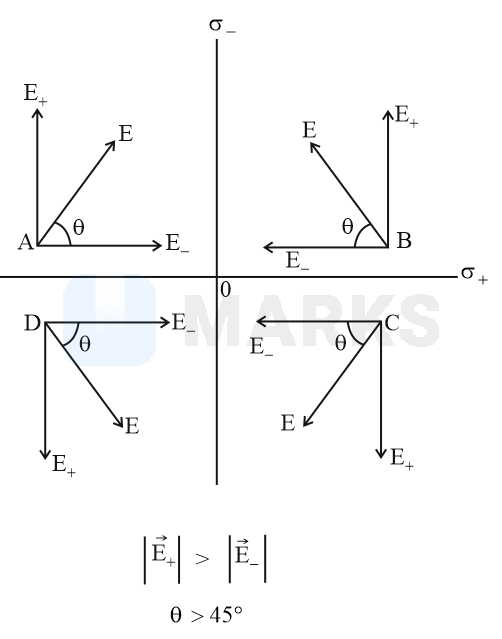

The electric field intensity due to each uniformly charged infinite plane is uniform. The electric field intensity at points A , B , C and D as shown in figure. Hence, the electric lines of forces are as given in below figure.
