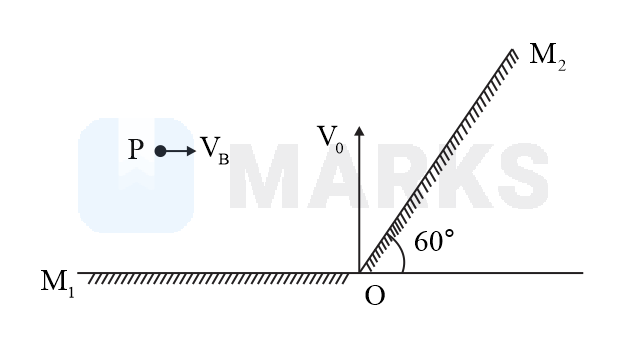

Two plane mirror M1 and  M2 are joined about there edges and then this structure is moving with velocity v0 as shown in the figure. A point object P is also moving with same speed v0 in the direction shown in the figure. Determine the magnitude of the velocity of the image of P in M1 wrt image of P in M2?

PhysicsRay OpticsJEE Main
Options:
  • A v03
  • B v06
  • C v03
  • D v032+v0
Solution:
2267 Upvotes Verified Answer
The correct answer is: v06

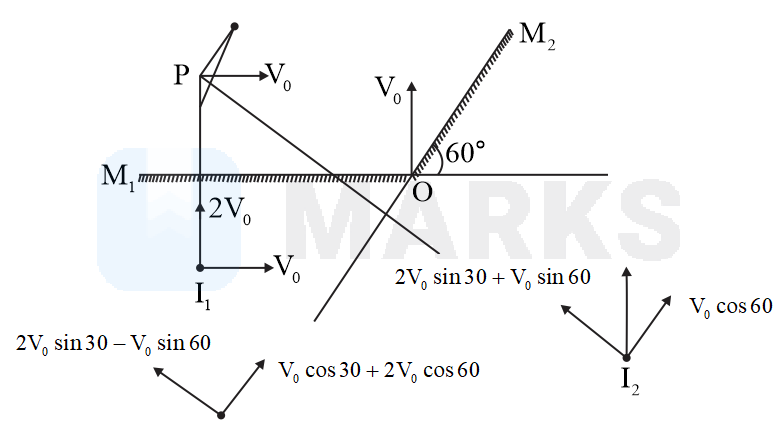

Velocity of image of of the point in the first mirror with respect to the image of the point in the second mirror is

VI1I2=-V03i^-V03j^

VI1I2=V06
