Two short bar magnets of length 1cm each have magnetic moments 1.20 A m2 and 1.00 A m2 respectively. They are placed on a horizontal table parallel to each other with their N poles pointing towards the south. They have a common magnetic equator and are separated by a distance of 20.0 cm. The value of the resultant horizontal magnetic induction at the mid-point O of the line joining their centres is close to
( Horizontal component of earth's magnetic induction is 3.6×10-5  Wb m-2 )
PhysicsMagnetic Properties of MatterJEE MainJEE Main 2013 (07 Apr)
Options:
  • A 3.50×10-4 Wb m-2
  • B 5.80×10-4  Wb m-2
  • C 3.6×10-5  Wb m-2
  • D 2.56×10-4 Wb m-2
Solution:
1514 Upvotes Verified Answer
The correct answer is: 2.56×10-4 Wb m-2

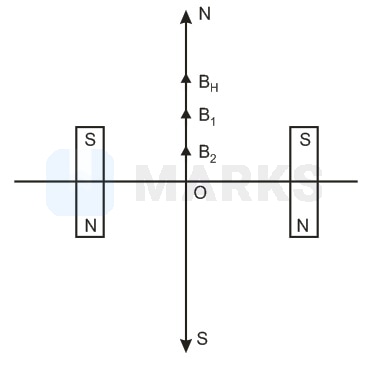

B net = B 1 + B 2 + B H

= μ 0 4 π M 1 x 3 + μ 0 4 π M 2 x 3 + B H

= { 10 7 ( 1.2+1 ) } ( 0.1 ) 3 +3.6× 10 5

= 2.56 × 10 - 4  Wb / m 2
