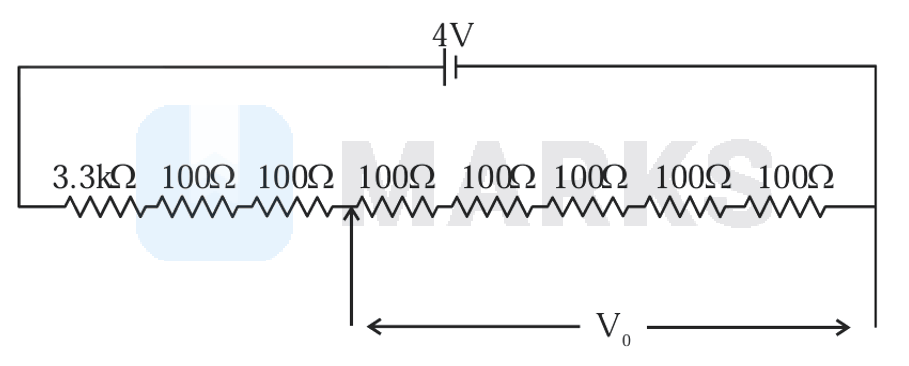

A potential divider circuit is shown in figure. The output voltage V0 is

PhysicsCurrent ElectricityJEE MainJEE Main 2024 (30 Jan Shift 1)
Options:
  • A 4 V
  • B 2 mV
  • C 0.5 V
  • D 12 mV
Solution:
1623 Upvotes Verified Answer
The correct answer is: 0.5 V

Equivalent resistance, Req=3300+7100=4000 Ω

Now, current through circuit i=44000=11000 A

Potential drop V0=iR=11000×500=0.5 V
