Question:
Answered & Verified by Expert
A ray of light is incident on a plane mirror at an angle of $30^{\circ}$. At what angle with the horizontal must a plane mirror be placed so that the reflected ray becomes vertically upwards?
Options:
Solution:
1694 Upvotes
Verified Answer
The correct answer is:
$30^{\circ}$

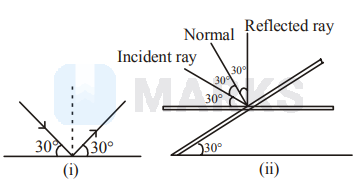

When a light ray falls on a mirror at an angle $30^{\circ}$, then the reflected ray will make the same angle with the plane as shown in Fig. (i)
In order to make the reflected ray vertical, the mirror should be rotated at an angle of $60^{\circ}$.
So, the mirror should be tilted by $\frac{60^{\circ}}{2}=30^{\circ}$ Fig. (ii)
In order to make the reflected ray vertical, the mirror should be rotated at an angle of $60^{\circ}$.
So, the mirror should be tilted by $\frac{60^{\circ}}{2}=30^{\circ}$ Fig. (ii)
