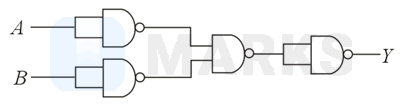

The following logic gate is equivalent to :, NOR Gate, OR Gate, AND Gate, NAND Gate

Truth table for the given logic gate : A B C 0 0 1 0 1 1 1 0 1 1 1 0 The truth table is similar to that of a NOR gate.

The following logic gate is equivalent to :

Question: Answered & Verified by Expert

The following logic gate is equivalent to :

PhysicsSemiconductorsJEE MainJEE Main 2021 (16 Mar Shift 2)

Options:

Solution:

2903 Upvotes Verified Answer

The correct answer is:

NOR

Gate

Truth table for the given logic gate :

The truth table is similar to that of a $NOR$ gate.
