Three blocks are connected by massless strings on a frictionless inclined plane of $30^{\circ}$ as shown in the figure. A force of $104 \mathrm{~N}$ is applied upward along the incline to mass $m_3$ causing an upward motion of the blocks. What is the acceleration of the blocks? (Assume, acceleration due to gravity, $g=10 \mathrm{~m} / \mathrm{s}^2$ )

Options:

Solution:
2908 Upvotes
Verified Answer
The correct answer is:
$1.5 \mathrm{~m} / \mathrm{s}^2$

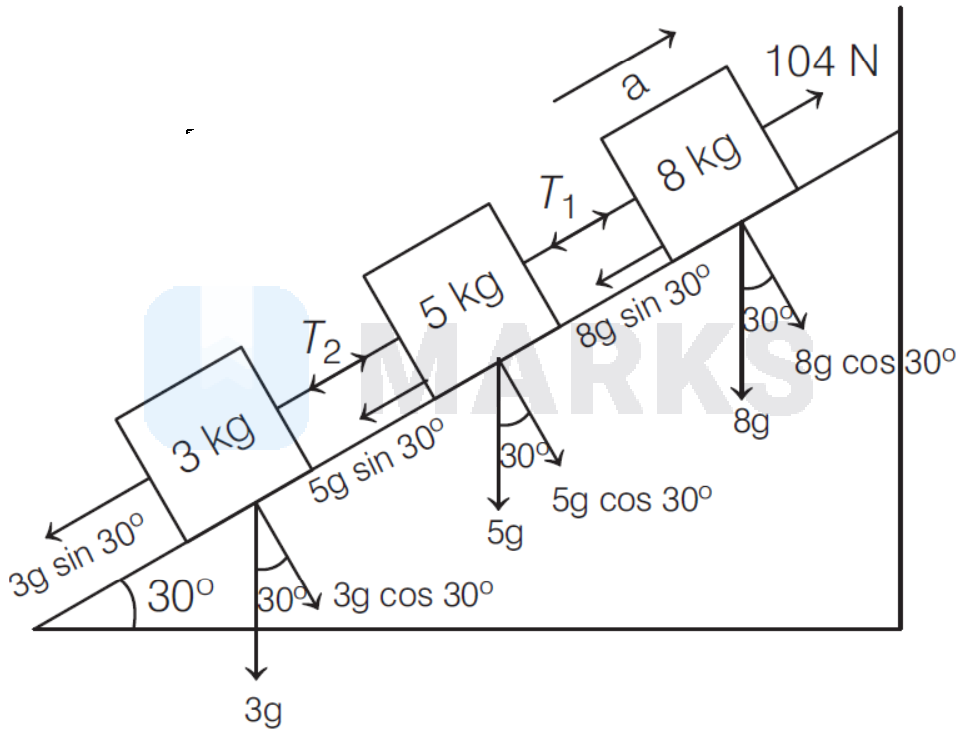

The given situation is shown in the figure below,

If the system moves upward with acceleration $a \mathrm{~m} / \mathrm{s}^2$ on the application of $104 \mathrm{~N}$, then the equation of motion for $8 \mathrm{~kg}$ block is
$$
\begin{aligned}
& 104-T_1-8 g \sin 30^{\circ}=8 a \\
& \Rightarrow \quad 104-T_1-8 \times 10 \times \frac{1}{2}=8 a \quad\left[\because g=10 \mathrm{~m} / \mathrm{s}^2\right] \\
& \quad 64-T_1=8 a
\end{aligned}
$$
Equation of motion for $5 \mathrm{~kg}$ block is
$$
\begin{array}{r}
T_1-T_2-5 g \sin 30^{\circ}=5 a \\
T_1-T_2-25=5 a
\end{array}
$$
Equation of motion for $3 \mathrm{~kg}$ block is
$$
\begin{aligned}
T_2-3 g \sin 30^{\circ} & =3 a \\
T_2-15 & =3 a
\end{aligned}
$$
Adding Eqs. (i), (ii) and (iii), we get
$$
24=16 a \Rightarrow a=1.5 \mathrm{~m} / \mathrm{s}^2
$$
Hence, acceleration $a$ of block is $1.5 \mathrm{~m} / \mathrm{s}^2$.

If the system moves upward with acceleration $a \mathrm{~m} / \mathrm{s}^2$ on the application of $104 \mathrm{~N}$, then the equation of motion for $8 \mathrm{~kg}$ block is
$$
\begin{aligned}
& 104-T_1-8 g \sin 30^{\circ}=8 a \\
& \Rightarrow \quad 104-T_1-8 \times 10 \times \frac{1}{2}=8 a \quad\left[\because g=10 \mathrm{~m} / \mathrm{s}^2\right] \\
& \quad 64-T_1=8 a
\end{aligned}
$$
Equation of motion for $5 \mathrm{~kg}$ block is
$$
\begin{array}{r}
T_1-T_2-5 g \sin 30^{\circ}=5 a \\
T_1-T_2-25=5 a
\end{array}
$$
Equation of motion for $3 \mathrm{~kg}$ block is
$$
\begin{aligned}
T_2-3 g \sin 30^{\circ} & =3 a \\
T_2-15 & =3 a
\end{aligned}
$$
Adding Eqs. (i), (ii) and (iii), we get
$$
24=16 a \Rightarrow a=1.5 \mathrm{~m} / \mathrm{s}^2
$$
Hence, acceleration $a$ of block is $1.5 \mathrm{~m} / \mathrm{s}^2$.
